6.9-inch Industrial-Grade High-Brightness Serial Port Display – IPS Full Viewing Angle, Supports Multiple Interface Customization
製品概要: This 6.9-inch TFT serial port display is designed for industrial control, IoT devices, and embedded systems. It utilizes high-brightness IPS display technology and supports multiple interface protocols, MIPIを含む, RGB, MCU, とSPI. RS485/RS232 communication can be customized to meet diverse embedded display needs.
Key Display Parameters
画面サイズ: 6.9-inch IPS panel, display area 33.6×170.88mm
Display Resolution: 280×1424 pixels, dot pitch 0.040(H)×0.120(V)mm
色のパフォーマンス: 16.7M true colors, normal black display mode
Brightness Level: 500CD/m²高輝度, clear visibility in strong light environments
応答時間: 35ミリ秒の応答時間, ensuring smooth display of dynamic content
表示角度: IPS full-viewing angle technology, 178-degree wide viewing angle
Physical Specifications

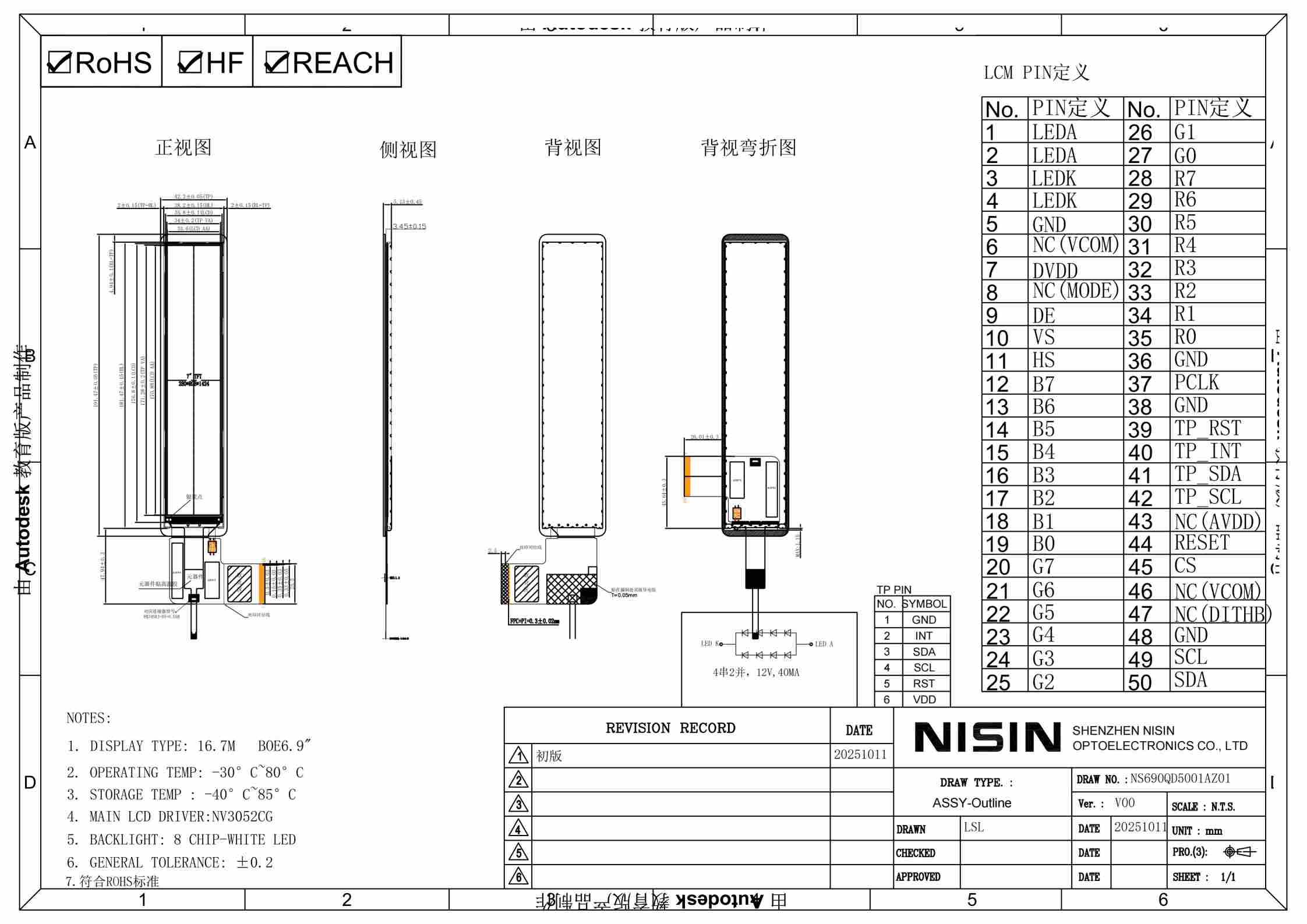

LCM Module Dimensions: 38.2×181.47×3.45mm
LCD Assembly Outer Diameter: 42.2×191.47×5.13mm

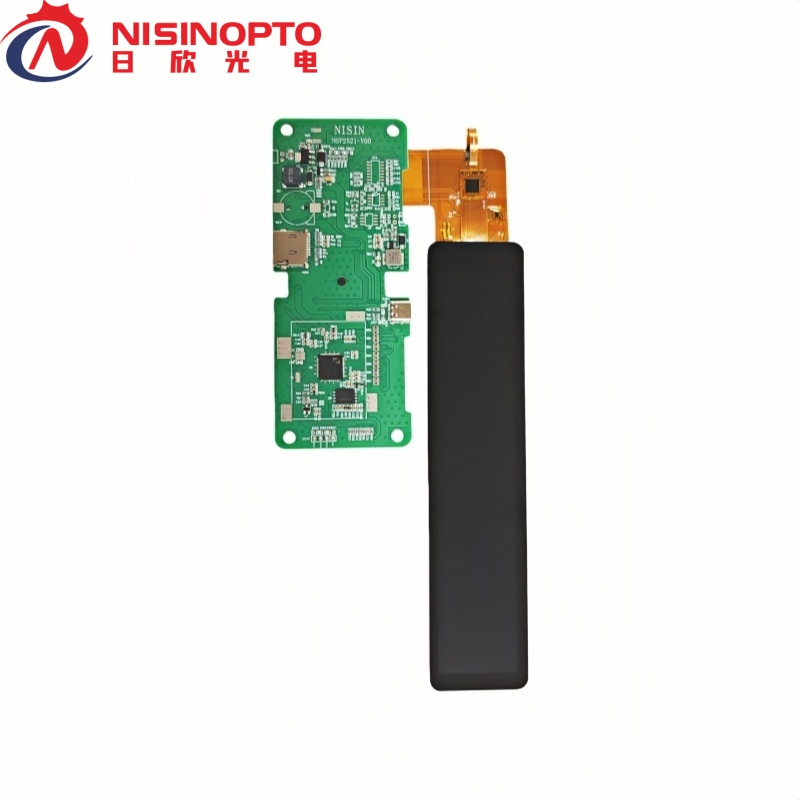

PCBA Mainboard Dimensions: 57.5×140×1.6m m
製品タイプ: Industrial-grade TFT LCD Display
Interfaces and Communication
Standard Interfaces: MIPIをサポート, RGB, MCU, and SPI interfaces
Standard Communication: TTL-level serial communication
Customizable Options: Upgradeable to RS485/RS232 industrial communication protocols
Flexibility: Offers customized hardware interfaces and communication protocols
Environmental Adaptability
動作温度: -20℃〜 +70℃, suitable for harsh industrial environments
保管温度: -30℃〜 +80℃, ensuring safe transportation and storage
信頼性: Industrial-grade components ensure long-term stable operation
アプリケーションシナリオ
Suitable for industrial HMIs, 医療機器, smart home control panels, portable instruments, automotive display systems, IoT terminal devices, and other embedded applications requiring reliable display solutions.
製品の利点
Multi-protocol Compatibility: Supports four interface standards per screen, reducing development and adaptation costs.
High Brightness and Visibility: 500cd/m² brightness ensures readability in outdoor and bright light environments.
広い温度範囲: -20℃ to +70℃ operating range adapts to varying environments.
柔軟なカスタマイズ: Provides personalized customization services for interfaces, communication protocols, and specifications.
Industrial Design: Compact structural design and industrial-grade reliability.
カスタマイズサービス
We offer comprehensive customization solutions, 含む, but not limited to, interface adjustments, communication protocol changes, size modifications, brightness upgrades, and enhanced adaptability to specific environments, tailored to meet your unique project needs.
