15.6-inch Industrial-Grade TFT LCD Display Module (1920× 1080)
This 15.6-inch TFT LCD display module is designed specifically for industrial control equipment. Featuring Full HD resolution (1920× 1080), it delivers crisp, detailed displays with rich colors (supporting 16.7 백만 가지 색상), making it suitable for a variety of demanding industrial applications.
주요 특징:
High brightness display: 450 CD/㎡, clearly visible even in bright sunlight.
넓은 작동 온도 범위: -20°C to +70°C, 보관 온도: -30° C ~ +80 ° C.
산업 등급 신뢰성: Anti-glare and scratch-resistant AG surface treatment enhances durability.
No touch function (customizable option).
RGB vertical stripe pixel arrangement for stable and uniform display.
Customizable, customized configuration available.
Typical Applications:
산업 제어 시스템
Human-machine interface (HMI)
Medical equipment displays
Automated equipment monitoring screens
Test and measurement instruments.

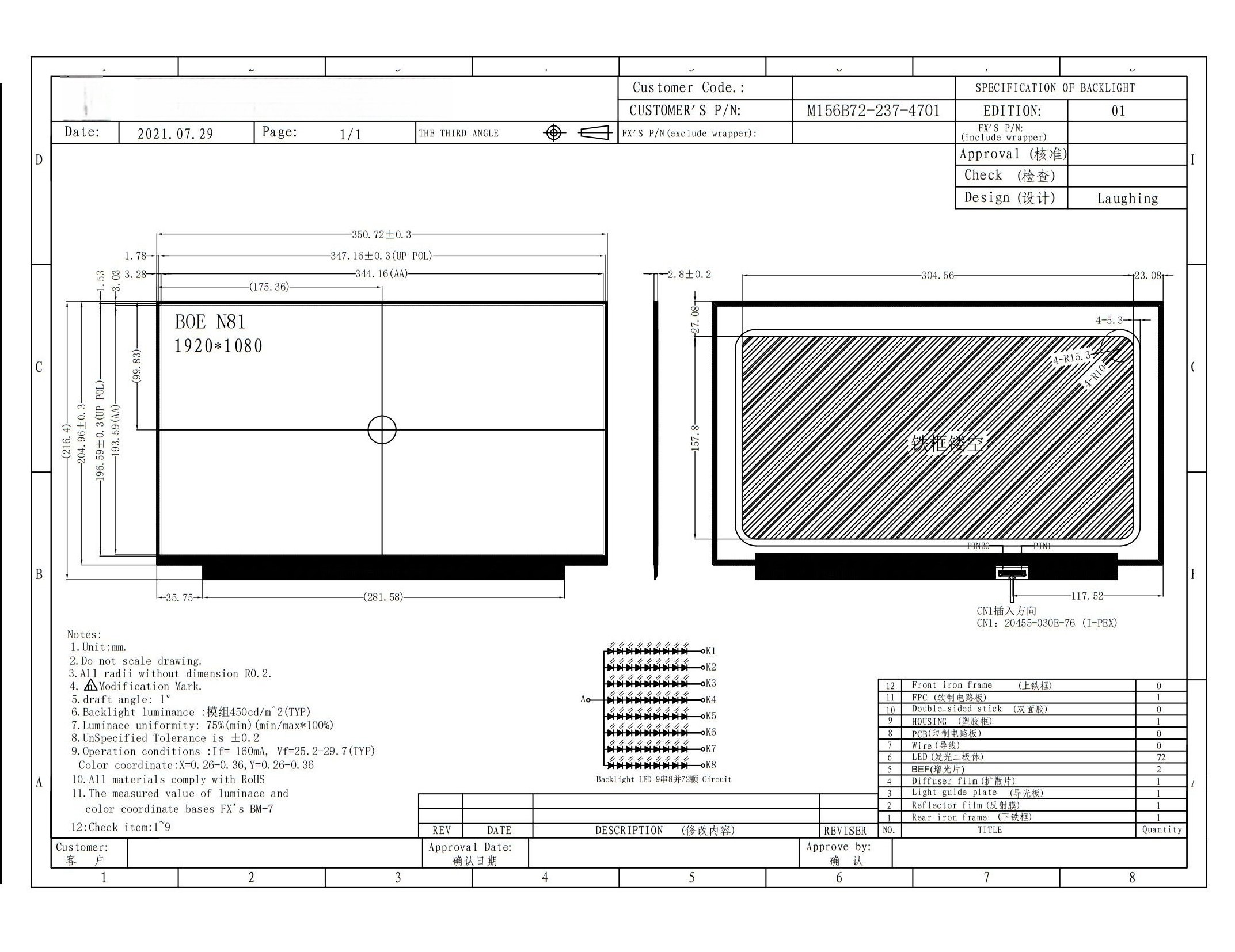

Technical Parameters:
디스플레이 크기: 344.16 × 193.59 mm
External dimensions: 350.72 × 216.4 × 2.8 mm
Pixel pitch: 0.17925 mm
Display mode: 일반적으로 검정색
Excellent contrast ratio for clear, layered display.
This display module, with its high reliability, wide operating temperature range, and excellent display performance, is an ideal choice for industrial control applications. 맞춤형 서비스를 지원합니다, welcome to contact us for more technical details and quotes.
