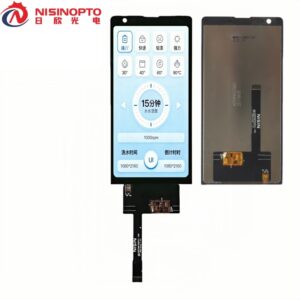

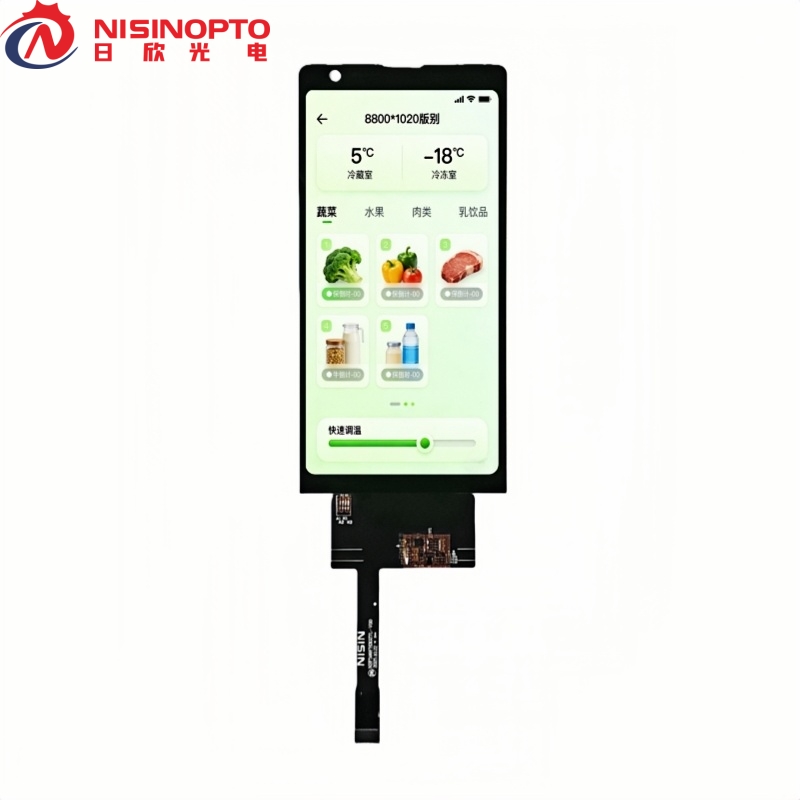

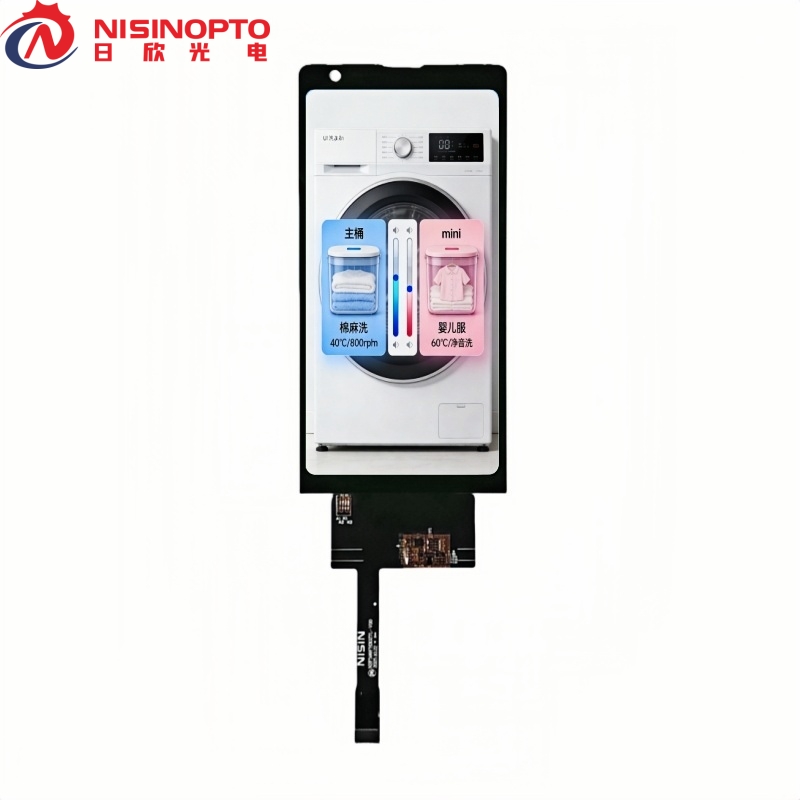

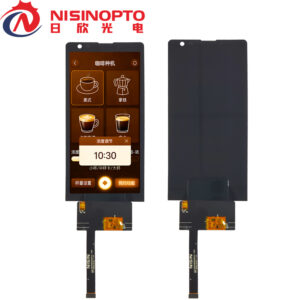

5.99-inch FHD+ In-Cell Touchscreen LCD Module (1080 엑스 2160) – Designed for High-End Handheld Devices
This high-end LCD module integrates a 5.99-inch Full HD+ display, IPS wide-viewing-angle technology, and an In-Cell integrated touchscreen. It is specifically designed for industrial handheld devices (such as data acquisition units, mobile POS systems, and rugged tablets) that demand superior display quality, responsiveness, and a slim design. Offering high brightness (270 니트), a wide operating temperature range, and customizable options, it is ideal for demanding applications.
Detailed Product Description
I. Superior Visual Experience
High-Definition Immersive View: Equipped with a 5.99-inch FHD+ resolution (1080 엑스 2160 픽셀) 표시하다, it delivers crisp and detailed visuals, presenting sharp details whether reading text, viewing drawings, or operating interfaces.
IPS Full-Viewing-Angle Technology: Utilizing advanced IPS panel technology, it provides an ultra-wide viewing angle of up to 178°. Color and contrast remain consistent from any viewing angle, ensuring undistorted information during team collaboration or outdoor viewing.
True Color Representation: Supports 16.7M true color display, combined with a high contrast ratio of 1000:1, delivering rich color gradations and vivid, lifelike images to meet the needs of professional image and data presentation.
Clearly Readable in Sunlight: A typical brightness of 270 cd/m² ensures clear visibility of screen content under various indoor and outdoor lighting conditions.
II. Robust and Reliable Industrial-Grade Design
In-Cell Touch Integration: Utilizes advanced In-Cell touch technology, integrating the touch sensor within the LCD panel. This results in a thinner and lighter module structure (module thickness of only 1.1mm), higher light transmittance, more sensitive and accurate touch response, and improved overall durability.
Stable Operation Over a Wide Temperature Range: Features a wide operating temperature range of -20℃ to +70℃ and a storage temperature range of -30℃ to +80℃, ensuring stable and reliable uninterrupted operation in extremely cold, hot, or temperature-fluctuating industrial, logistics, and outdoor environments.
컴팩트한 디자인: The display area is 68.04 x 136.08mm, with an overall module size (LCM) of only 70.05 x 142.05mm, resulting in a high screen-to-body ratio. The final product package size (74.24 x 153.09mm) provides great flexibility in device design, easily integrating into various handheld terminal housings.
III. High Performance and Easy Integration
빠른 응답: A 35ms response time effectively reduces screen tearing, ensuring smooth operation of swiping, clicking, and other actions, 사용자 경험을 향상시킵니다.
Standard Industrial Interface: Utilizes the universal MIPI 4-lane interface, ensuring stable and high-speed signal transmission with strong compatibility. This greatly simplifies connection and driver development with mainstream main control chips, shortening your product development cycle. “노멀 블랙” Display Mode: The display type is “노멀 블랙,” and the screen appears black when power is off or there is no signal. This provides a uniform appearance and helps reduce power consumption in specific scenarios.
IV. Core Application Scenarios
This module is an ideal display solution for the following fields:
Industrial Handheld Terminals: Logistics and warehousing barcode scanners, inventory management PDAs, factory inspection equipment.
Mobile Payment and Retail: Portable POS machines, smart cash registers, mobile ordering terminals.
Rugged Mobile Computing: Rugged tablets, outdoor surveying equipment, field service terminals.
Professional Tools: Medical diagnostic equipment, 테스트 및 측정 장비, 보안 모니터링, and handheld displays.
다섯. Customized Services
We understand that different projects have unique needs. This standard module supports customization services, 포함하되 이에 국한되지는 않습니다.:
Adjusting the position and length of the FPC cable
Custom surface treatments (anti-glare, anti-fingerprint, 등.)
Adjusting electrical parameters such as brightness and refresh rate
Providing bonding solutions for cover plates (glass or film). Please contact us to discuss your specific needs; we will provide you with the best customized display solution.
