3.45-inch Landscape LCD Display Module: High-Performance Visual Solution for Diverse Applications
In the realm of display technology, finding the perfect balance between size, resolução, and functionality is crucial. Our 3.45-inch 640*480 landscape LCD Module stands out as a versatile and high-quality option that meets a wide range of needs.
Crystal – Clear Visuals
With a resolution of 640*480, this LCD Module delivers sharp and detailed images. Whether you’re using it for industrial control panels, dispositivos médicos, or consumer electronics, the high resolution ensures that every piece of information is presented clearly. The 16.7M color display capability adds vibrancy and realism to the visuals, making it suitable for applications where accurate color representation is essential.
Optimal Size and Design

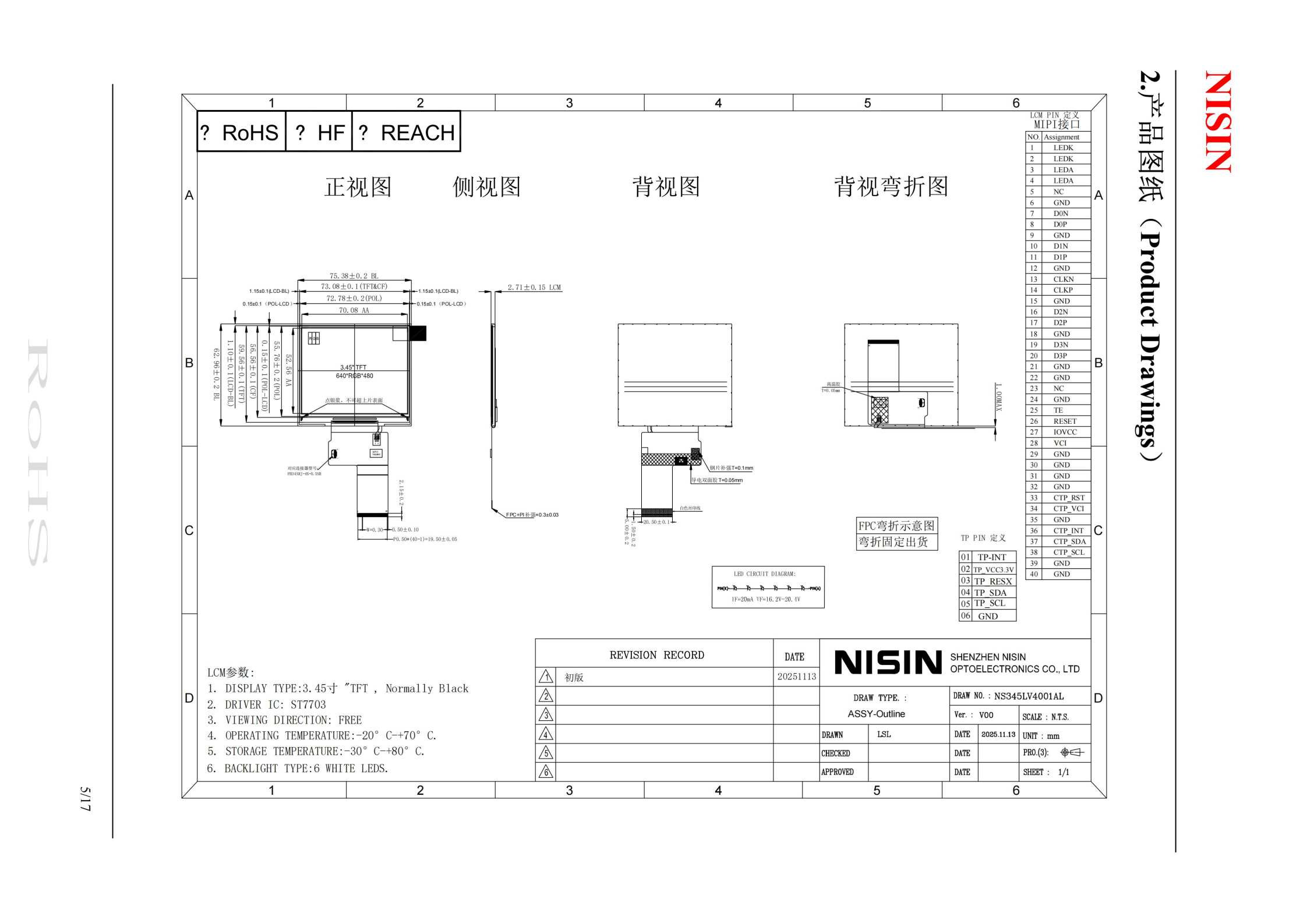

The 3.45-inch size is compact yet large enough to display important information effectively. The display area measures 70.0852.56mm, providing a sufficient canvas for your content. The LCM (Liquid Crystal Module) has overall dimensions of 75.3862.96*2.71mm, making it easy to integrate into various devices. Its slim profile of 2.71mm also helps save space in your product design.
Superior Display Characteristics
The display features a dot pitch of 0.109*0.109mm, which contributes to the high resolution and sharpness of the images. The contrast ratio of 900:1 ensures that dark areas are deep and rich, while bright areas are vivid and well-defined. This high contrast enhances the overall viewing experience, especially in environments with varying lighting conditions.
The display type is Normal Black, which offers excellent black levels and reduces light leakage, resulting in better image quality. The IPS (Comutação no plano) view angle technology provides a wide viewing angle of up to 178 degrees both horizontally and vertically. This means that users can view the display clearly from almost any angle, making it ideal for applications where multiple people need to view the screen simultaneously.
Customizable and Flexible
One of the key advantages of this LCD display is its customization options. We understand that different applications have unique requirements, and our display can be tailored to meet your specific needs. Whether you need a different size, a different resolution, or additional features, we can work with you to create a customized solution.
Touch Functionality (Opcional)
Although the base model comes without touch functionality, it can be equipped with an external touch panel. The touch type is an externally mounted touch, which provides a responsive and accurate touch experience. This makes the display suitable for applications that require user interaction, such as self-service kiosks, dispositivos de jogos, and interactive educational tools.
Fast Response and Reliable Performance
The response time of 35ms ensures that the display can keep up with fast-moving content, reducing motion blur and providing a smooth viewing experience. The module brightness of 350 cd/m² ensures that the display is visible even in bright environments, making it suitable for outdoor applications or well-lit indoor spaces.
Durable and Wide – Temperature Range
This LCD display is designed to withstand a wide range of operating and storage temperatures. The operating temperature range is from – 20℃ to + 70℃, and the storage temperature range is from – 30℃ to + 80℃. This makes it suitable for use in harsh environments, such as industrial settings, automotive applications, and outdoor equipment.
Integração fácil
The display supports the MIPI 4 interface type, which is a high-speed serial interface commonly used in mobile and embedded devices. This interface provides fast data transfer rates and low power consumption, making it easy to integrate the display into your existing systems.
Para concluir, our 3.45-inch 640*480 landscape LCD display is a high-performance, customizable, and reliable solution for a wide range of applications. With its excellent visual quality, flexible design, and durable construction, it is the perfect choice for your next project. Contact us today to learn more about how we can customize this display to meet your specific requirements.
