3.5 Inch Capacitive Touch Serial Screen for Environment Detector
제품개요
This 3.5‑inch IPS capacitive touch serial display is a high‑performance human‑machine‑interface module specially optimized for environment monitoring detectors, air quality testers, industrial environmental instruments. Featuring TTL serial communication, high brightness and wide‑angle IPS view, it offers stable real‑time data visualization, intuitive touch operation and flexible hardware customization for your environmental monitoring equipment.
핵심사양
- 화면 크기: 3.5 인치
- 해결: 320*480, support horizontal display

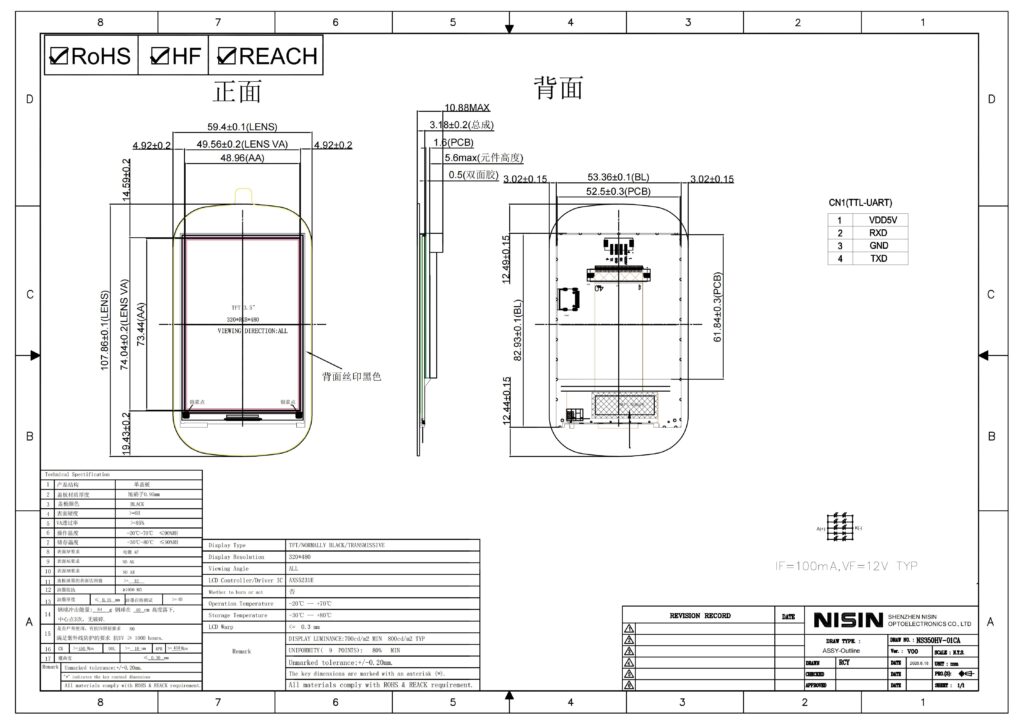

- Active Display Area: 48.96×73.44 mm
- Outline Dimension: 59.40×107.86×3.87 mm, touch screen shape customizable
- PCBA 크기: 52.50×61.84 mm
- 명도: 550 CD/㎡, clear readability under bright indoor or semi‑outdoor environment
- 터치 유형: CTP Capacitive Touch, sensitive, smooth multi‑point touch experience
- 통신 인터페이스: TTL Serial Port, 간단한 배선, easy MCU integration
- 시야각: Full‑view IPS panel, view environmental data from all directions without color shift
- Working Voltage: 5V DC
- 작동 온도: -20℃ ~ +70℃, wide temperature range fits harsh industrial & outdoor environment‑detecting scenarios
- 보관 온도: -30℃ ~ +80℃
- 맞춤 서비스: 사용 가능, we can customize touch panel shape, UI firmware, structure design to match your environment detector housing
Key Advantages for Environment Detector

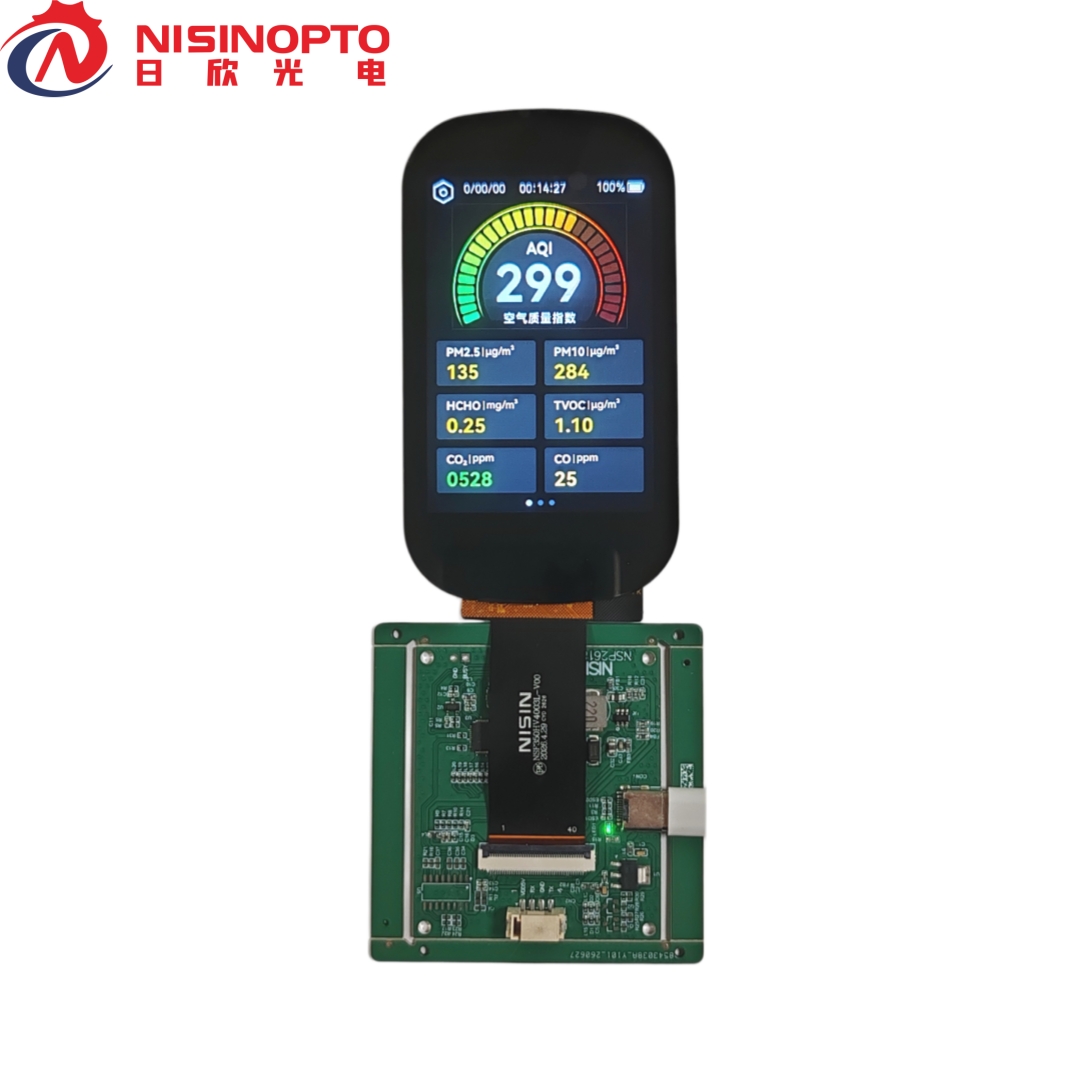

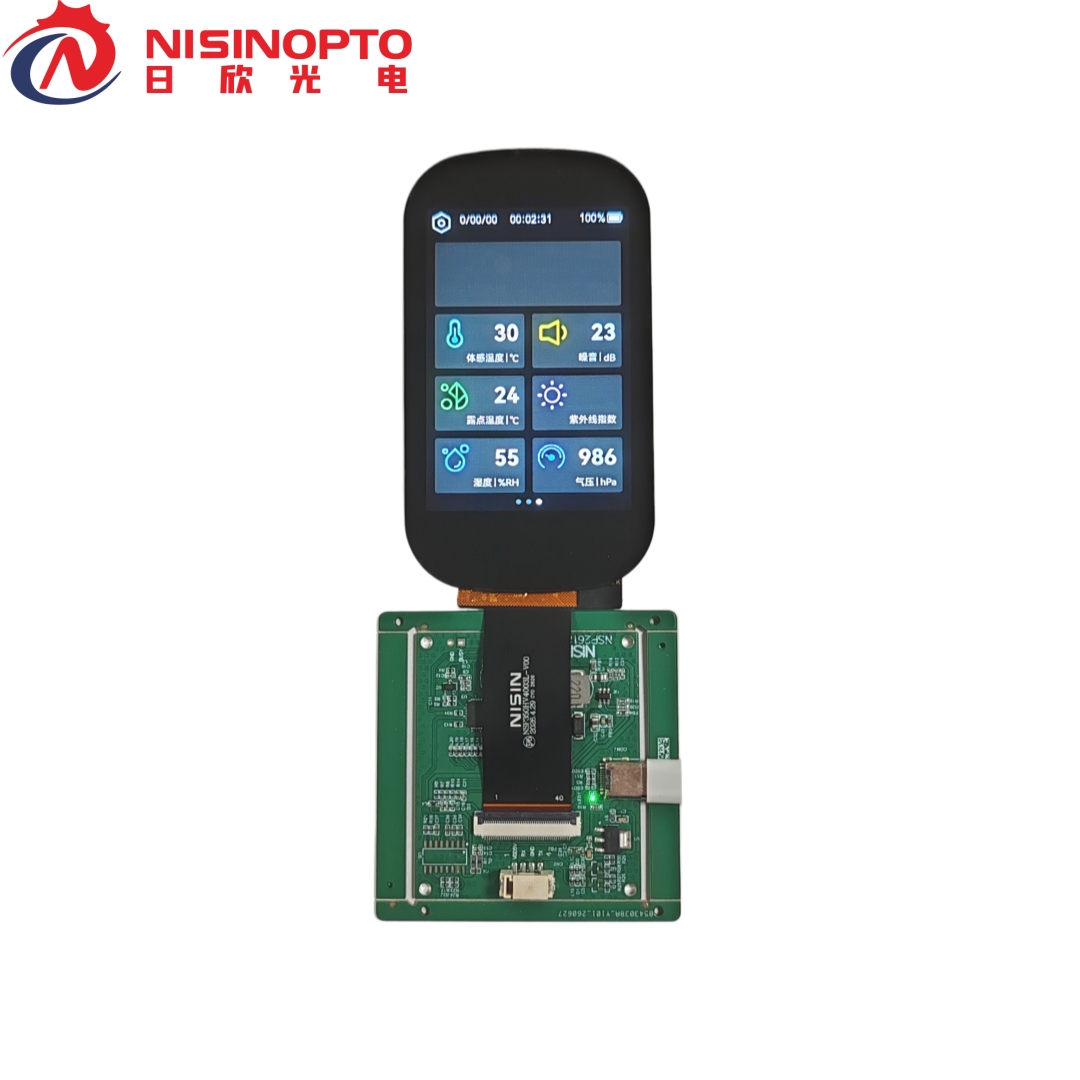

- Excellent IPS Wide‑view Performance: Monitoring staff can read PM2.5, 온도, 습기, CO₂ and other environmental data clearly from side angles.
- 550cd/m² 고휘도: Anti‑glare display performance, suitable for indoor and semi‑outdoor environment monitoring devices.
- Simple TTL Serial Control: No complex RGB driver, your main controller can send data to update environmental readings, charts, alarm prompts quickly via serial commands.
- Durable Wide‑Temperature Design: Stable operation in fluctuating‑temperature industrial, workshop, outdoor environment‑detection applications.
- Capacitive Touch Interaction: Replace physical buttons; users can switch monitoring pages, set alarm thresholds and view historical environment records on‑screen.
- Full Custom‑Support: Adjust screen outline, cover lens shape, pre‑load environment‑monitor UI, perfectly match your environment detector enclosure and brand requirements.
일반적인 애플리케이션 시나리오
Environment quality detector, air quality monitor, temperature‑humidity recorder, gas leakage tester, industrial environmental monitoring equipment, indoor air analyzer, portable environmental detection instrument.
