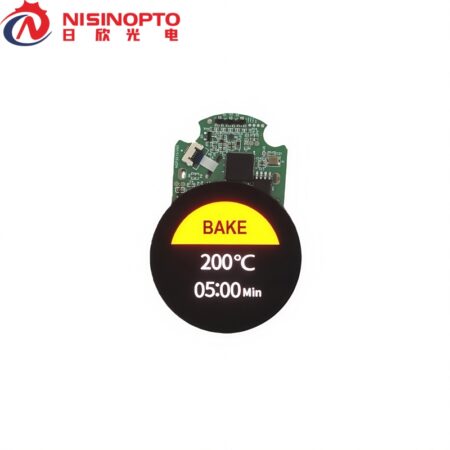

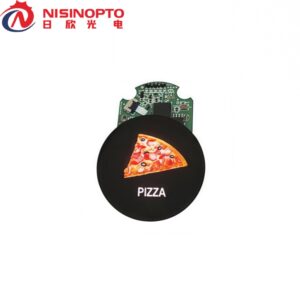

1.43-inch AMOLED High-Definition Smart Display – Designed for High-End Health Kettles and Smart Devices
Обзор продукта
A high-performance display solution specifically designed for modern health appliances and various smart devices! This 1.43-inch AMOLED touch screen features an ultra-high resolution of 466×466 pixels, providing an unprecedentedly clear visual experience for smart health kettles and being widely applicable to various smart devices. Stable data transmission is achieved through TTL serial communication (RS485/RS232 customization supported), and IPS full-angle technology ensures clear information display from any angle.
Core Specifications
📱 Display Performance
Размер экрана: 1.43-inch AMOLED Touch Screen
Разрешение: 466×466 pixels, perfect detail presentation
Область отображения: 36.35×36.35mm, optimized space utilization
Цветопередача: 16.7 million full-color display, restoring true colors
Шаг пикселя: 78μm×78μm, delicate image without graininess
Brightness Level: 650кд/м², still clearly visible in bright light
Response Speed: 3MS Ultra-Fast Response, no operation delay
🔧 Physical Characteristics
Overall Dimensions: 44.3×44.3×1.65mm, Ультра-тонкий дизайн

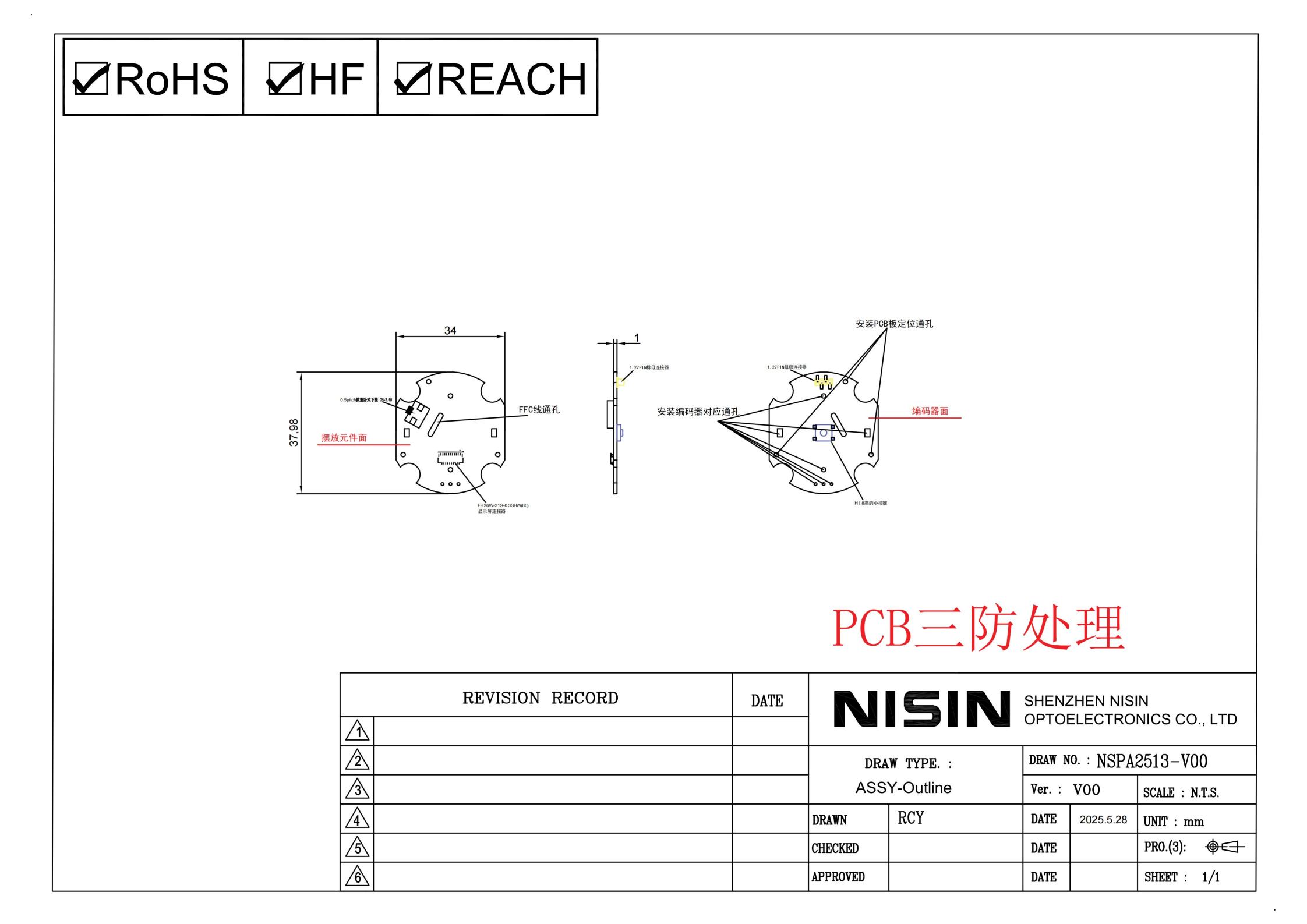

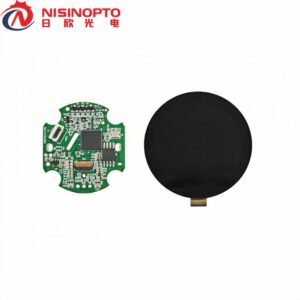

PCB Dimensions: 34×37.98×1mm, easy integration
Угол просмотра: IPS full-angle technology, 178-degree clear viewing
Тип продукта: High-quality TFT display module
🔌 Connectivity and Compatibility
Коммуникационный интерфейс: Standard TTL serial port (RS485/RS232 Настраиваемое)
User Interface: FFC flexible flat cable connection, easy installation
Temperature Adaptability: Operating temperature -20°C~+70°C, storage temperature -30°C~+80°C
Core Application Areas
🍵 Advantages for Health Kettle Applications
Precise Temperature Control Display
The high-resolution AMOLED screen accurately displays real-time water temperature, cooking time, mode settings, and progress status, giving users a clear overview of the health kettle’s operating status.
Sensitive Touch Interaction
The touchscreen, with a response time of only 3ms, provides a smooth and natural operating experience. With a simple touch, you can switch cooking modes, adjust the temperature, and set timers.
🔄 Multi-Device Compatibility
This display screen is not only suitable for health kettles but can also be widely used in the following device categories:
Умная кухонная техника
Coffee Machines and Soy Milk Makers: Displays extraction time, температура, and concentration settings
Smart Rice Cookers: Cooking progress, reservation time, and rice type selection interface
Air Fryers and Ovens: Temperature curve, оставшееся время, and mode selection
High-Speed Blenders: Rotation speed display, program selection, and safety lock status
Health Monitoring Devices
Electronic Blood Pressure Monitors: Clearly displays systolic/diastolic pressure and pulse data
Smart Thermometers: Fast temperature measurement display and historical record viewing
Blood Glucose Monitors: Blood glucose values, measurement time, and trend charts
Home Massagers: Intensity adjustment, mode selection, and timer settings
Smart Home Control
Environmental Monitors: Real-time display of temperature, влажность, and air quality index
Smart Switch Panels: Device status, scene modes, and energy consumption statistics
Security System Terminals: Alarm information, monitoring status, and arming settings
Industrial and Commercial Equipment
Portable Measuring Instruments: Data acquisition display and parameter setting interface
Handheld Terminal Devices: Barcode scanning display and inventory management interface
Industrial Control Operation Panels: Equipment status monitoring and simple parameter adjustment
🔋 Low Power Consumption and High Performance
AMOLED technology provides excellent contrast while reducing power consumption, extending the overall battery life of the device. The 650cd/m² high brightness ensures clear readability in various lighting conditions, including kitchens, outdoors, and medical environments.
🌡️ Durable and Reliable Design
The wide operating temperature range (-20° C до +70 ° C.) ensures stable operation of the display screen in high-temperature and high-humidity kitchen environments, adapting to the demanding working conditions of health kettles during long cooking times and various other devices. 🛠️ Easy Integration
Standardized interfaces and a compact size (44.3×44.3×1.65mm) allow this display to be easily integrated into various health kettle and smart device designs. The FFC connection method simplifies the installation process.
Why choose our display?
One-Stop Solution
From health kettles to various smart devices, we provide a unified display solution, reducing your supply chain complexity and improving procurement efficiency.
Flexible Customization Services
Based on your specific application needs, we can provide:
Optimized interface layout design
Customized function buttons
Brand color and logo integration
Adaptation to specific communication protocols
Fast Integration Support
We provide complete technical documentation, driver code examples, and integration guides to shorten your product development cycle and accelerate time to market.
Услуги по настройке
We offer comprehensive, customized solutions:
Communication protocol customization (RS-485/RS-232)
Interface type adjustment
Special size adaptation
Firmware function development
Brand UI interface design
Volume purchase price discounts
Quality Assurance
Each display undergoes rigorous testing to ensure stable and reliable performance throughout the entire lifecycle of smart health kettles and other devices. Our products comply with international electrical safety standards, making them an ideal choice for high-end kitchen appliances and smart device brands.
