1.43 inch amoled screen
1.43 inch amoled screen
1.43 inch amoled screen
Click to enlarge
1.43 inch amoled screen
1.43 inch amoled screen
1.43 inch amoled screen

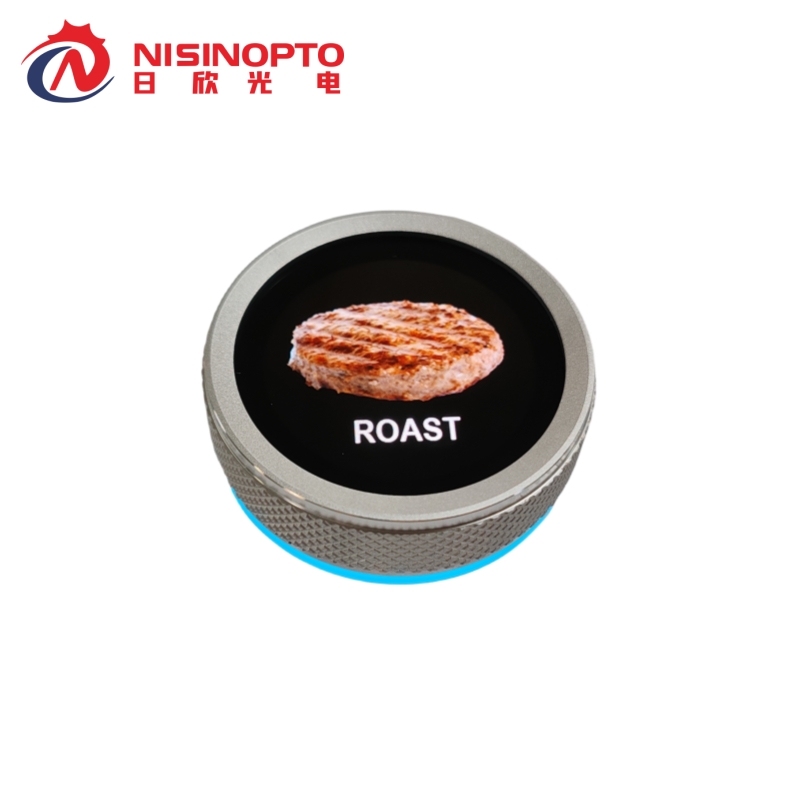

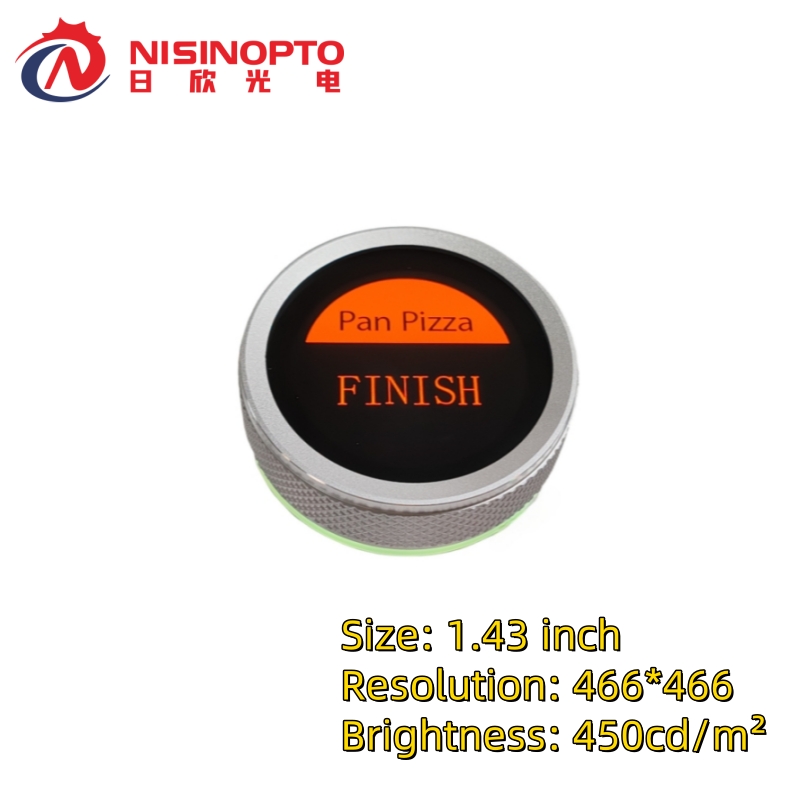

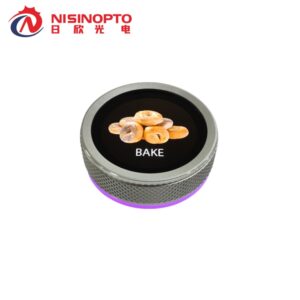

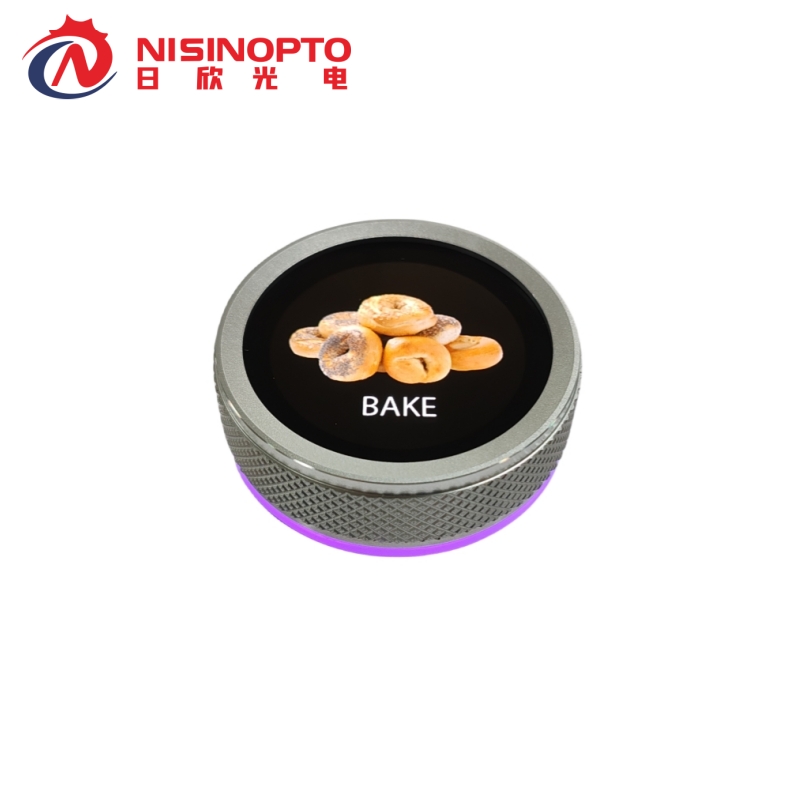

1.43 Inch AMOLED Knob Screen

SIZE: 1.43-inch AMOLED
Resolution: 466*466
Display Area: 36.35*36.35mm
LCM Dimensions: 52.5*27.82mm
Interface: TTL UART
User Interface: 5-pin 0.5mm FFC
Shell Material: Knurled metal, flat metal
Shell color: Silver, dark metallic color, champagne, black
Feature Selection: Knob + push button
Touch Type: Yes
Dot Pitch: 78um*78um
Color: 16.7M
Contrast Ratio: 60000:1
Response Time: 3ms
Brightness: 450cd/m²
View Angle: Full viewing angle
Operating temperature: -20℃~+70℃
Storage Temperature: -30℃~+80℃
UI Platform: LeveTop
Customization: Yes, software, color, light strip

ENQUIRY!
Category:

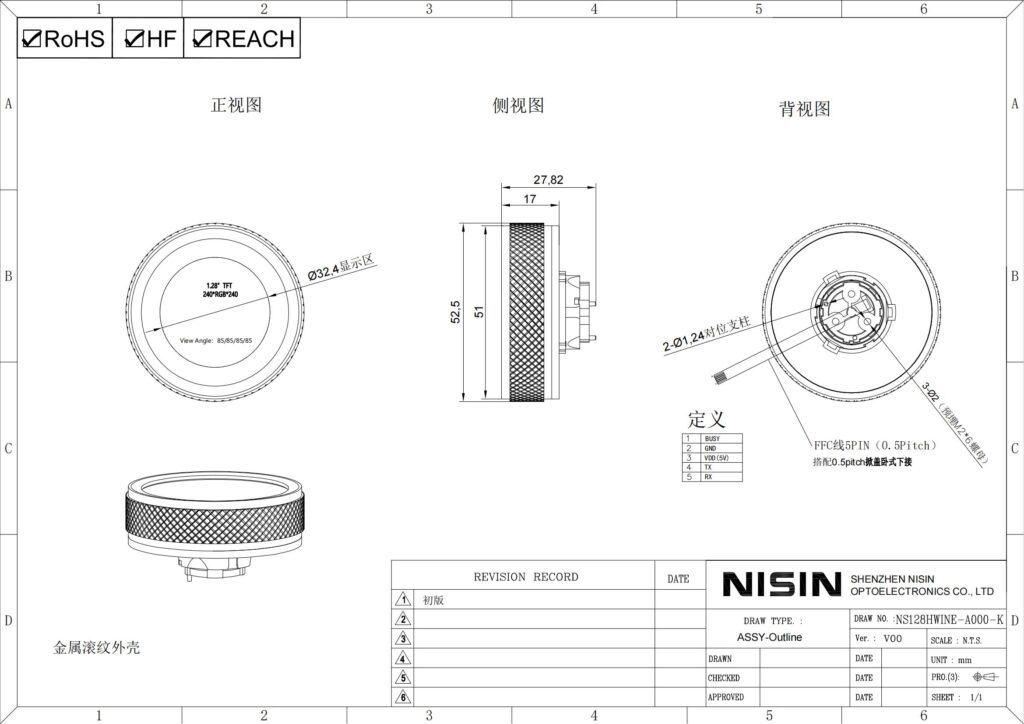

drawing

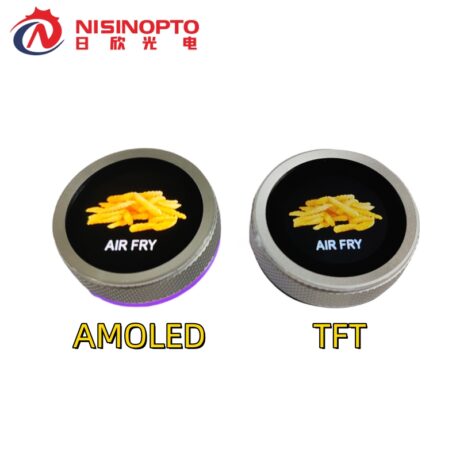

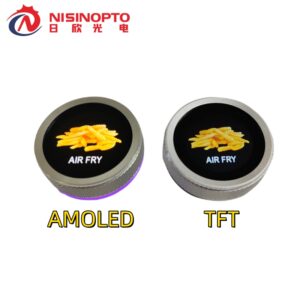

AMOLED vs. TFT-LCD:

  • AMOLED: Self-illuminating, vibrant colors, true blacks (infinite contrast), power-saving (black pixels are off), fast response, but may cause burn-in.

  • TFT-LCD: Backlight + color filter, natural colors, low contrast, stable power consumption, no burn-in, suitable for long periods of bright screen time.

  • Choose AMOLED for high image quality and power saving; choose TFT-LCD for durability and eye protection.
