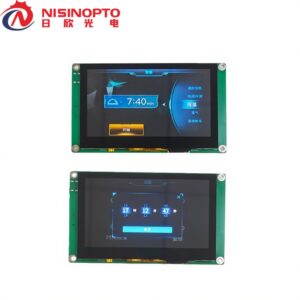

4.3-inch Touch Serial Screen | An Interactive Solution Designed for Smart Microwave Ovens and Ovens
This product is a high-performance 4.3-inch touch serial screen specifically designed for modern smart kitchen appliances (such as microwave ovens and ovens). It perfectly combines high-definition display, sensitive touch control, and stable and reliable industrial-grade performance, providing equipment manufacturers with an intuitive, smooth, and durable human-machine interface, significantly enhancing the user experience and technological sophistication of the product.
Core Product Features
1. High-Definition Visual Experience, Information at a Glance
800*480 High-Definition Resolution: Coupled with an effective display area of 95.04mm x 53.86mm, the screen displays clear and detailed images, vividly showcasing cooking menus, temperature curves, time progress, preset recipe icons, and status indicators.
16.7M True Color Display: Rich and realistic colors perfectly support multi-color UI interfaces, food image display, and differentiated status indicators, making the operation interface more vivid and intuitive.
Full Viewing Angle Display: The screen is clearly visible from any angle, allowing users to easily read information when operating the device at different heights or positions.
2. Sensitive Touch Interaction, Simple and Intuitive Operation
Capacitive Touch (CTP): Provides a sensitive, accurate, and durable touch experience. Users can intuitively select functions, adjust temperature and time, and switch modes through simple touches and swipes, completely replacing traditional mechanical buttons and improving the overall aesthetics and reliability of the product.
3. Industrial-Grade Stability and Reliability, Suitable for Kitchen Environments
Wide Operating Temperature Range: Supports an operating temperature of -20℃ ~ 70℃ and a storage temperature of -30℃ ~ 80℃, easily handling temperature differences in the kitchen environment and the heat generated by the appliance itself, ensuring stable operation over long periods.
High Brightness Backlight: The high brightness of 350 cd/m² ensures that the screen remains clearly readable even in bright kitchen lighting conditions, without being affected by glare.

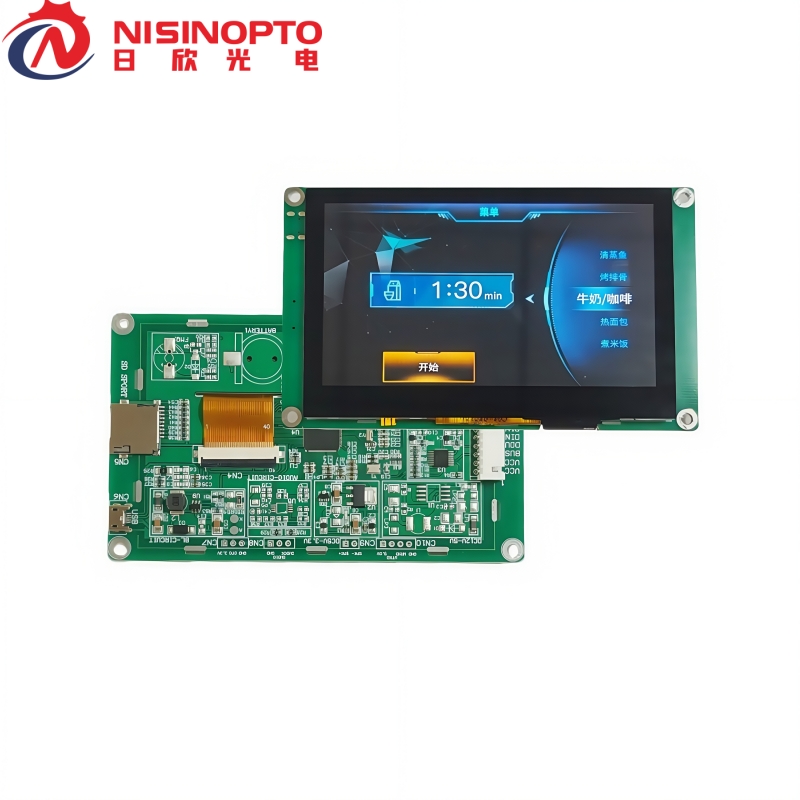

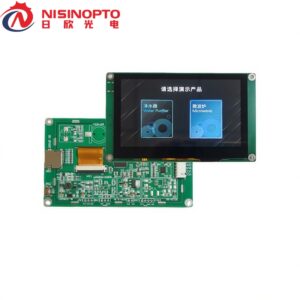

Compact and Robust Structure: The PCBA board size is 121.90mm x 73.20mm x 14.30mm, and the LCM module thickness is only 3.00mm, making it easy to integrate into various appliance panel designs. The robust structural design meets the long-term use requirements of electrical products. 4. Flexible Integration and Customization Support
Standard TTL Interface: Provides a stable, high-speed display and touch data transmission interface, making connection to the main control MCU simple and convenient.
Customizable Communication Interface: Serial communication methods such as RS232 or RS485 can be customized according to customer needs, facilitating integration with various main control boards.
Comprehensive Customization Service (Yes): Supports deep customization of display content, UI interface, touch functions, firmware logic, and even some hardware specifications to meet the unique functional design and brand image requirements of different brands of microwave ovens and ovens.
5. Low Power Consumption and Convenient Power Supply
Single 5V Power Supply: Standard 5V input voltage, compatible with most kitchen appliance motherboard power systems, simple power supply design, and excellent energy consumption control.
Why is it suitable for microwave ovens and ovens?
Enhanced Modern Operation: Transforms cumbersome knobs and buttons into an intuitive graphical touch interface, supporting complex functions such as recipe navigation and multi-stage cooking programming, significantly improving product quality and user experience.
Rich Information Display: The high-definition color screen can display rich cooking parameters (power, temperature, remaining time), dynamic working status, and safety prompts in real time, giving users complete control over the cooking process.
Enhanced Reliability: No physical button wear issues, and better overall protection. Industrial-grade quality ensures stable operation in high-temperature, high-humidity kitchen environments, resulting in a longer lifespan.
Accelerated Product Development: The mature serial screen solution provides powerful development tools and technical support, significantly shortening the UI development and debugging cycle of customer products, helping them to quickly launch products to the market.
Typical Application Scenarios

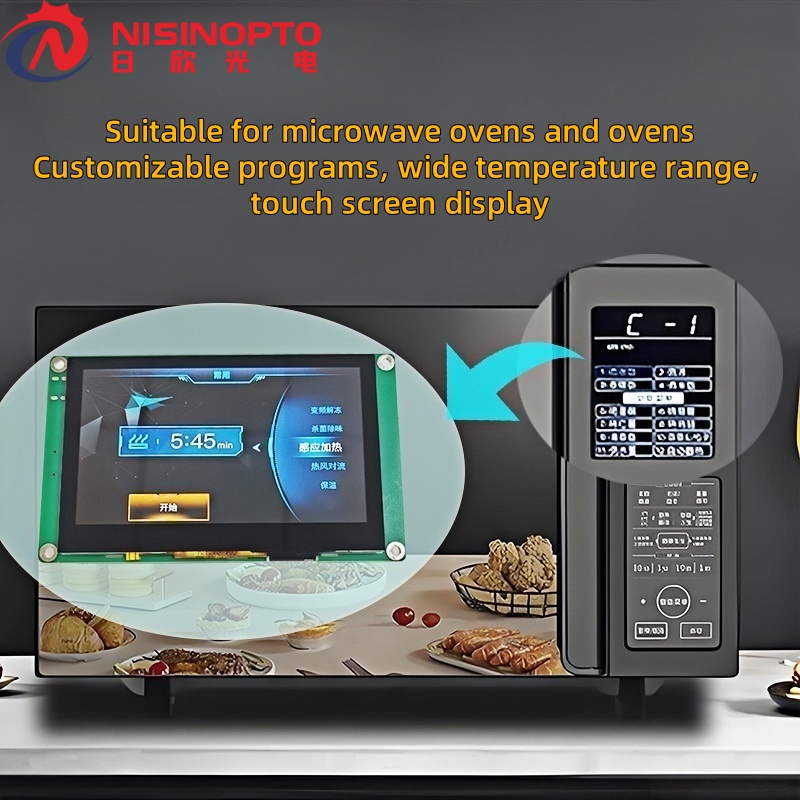

Function selection, power adjustment, defrosting mode, and recipe recall interface for smart microwave ovens.
Temperature setting, baking mode selection, time setting, and preheating status display for built-in or countertop electric ovens.
Multi-functional composite operation and mode switching interface for microwave ovens (microwave and oven combination units).
Other kitchen appliances require a highly reliable human-machine interface.
This 4.3-inch touch serial screen is the ideal core component for creating next-generation smart, efficient, and user-friendly kitchen appliances. We look forward to cooperating with you to create outstanding product experiences.
