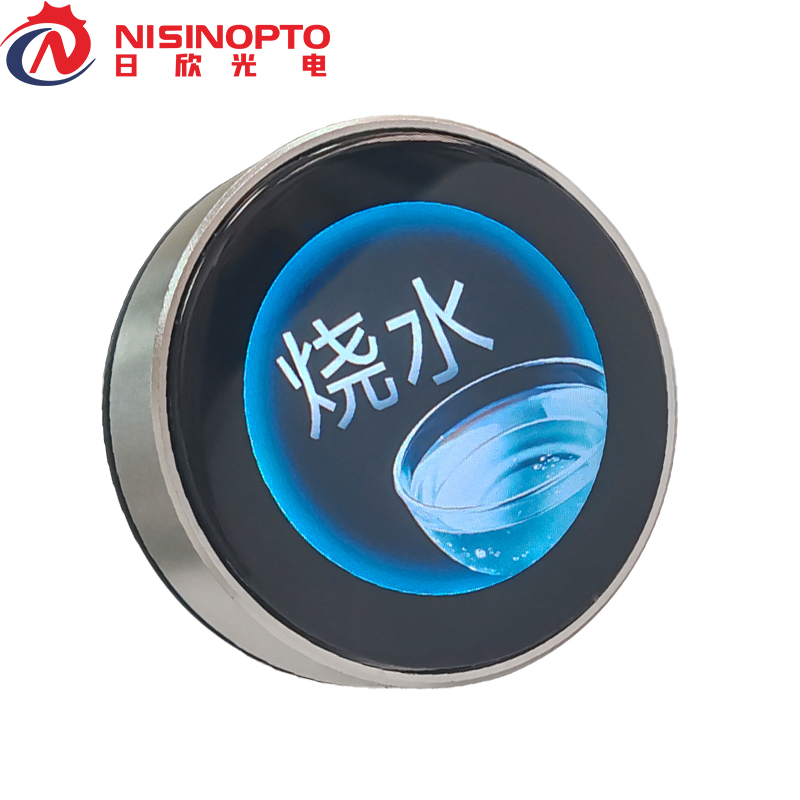

Product Introduction: 1.47‑inch INCELL Touch Knob Display

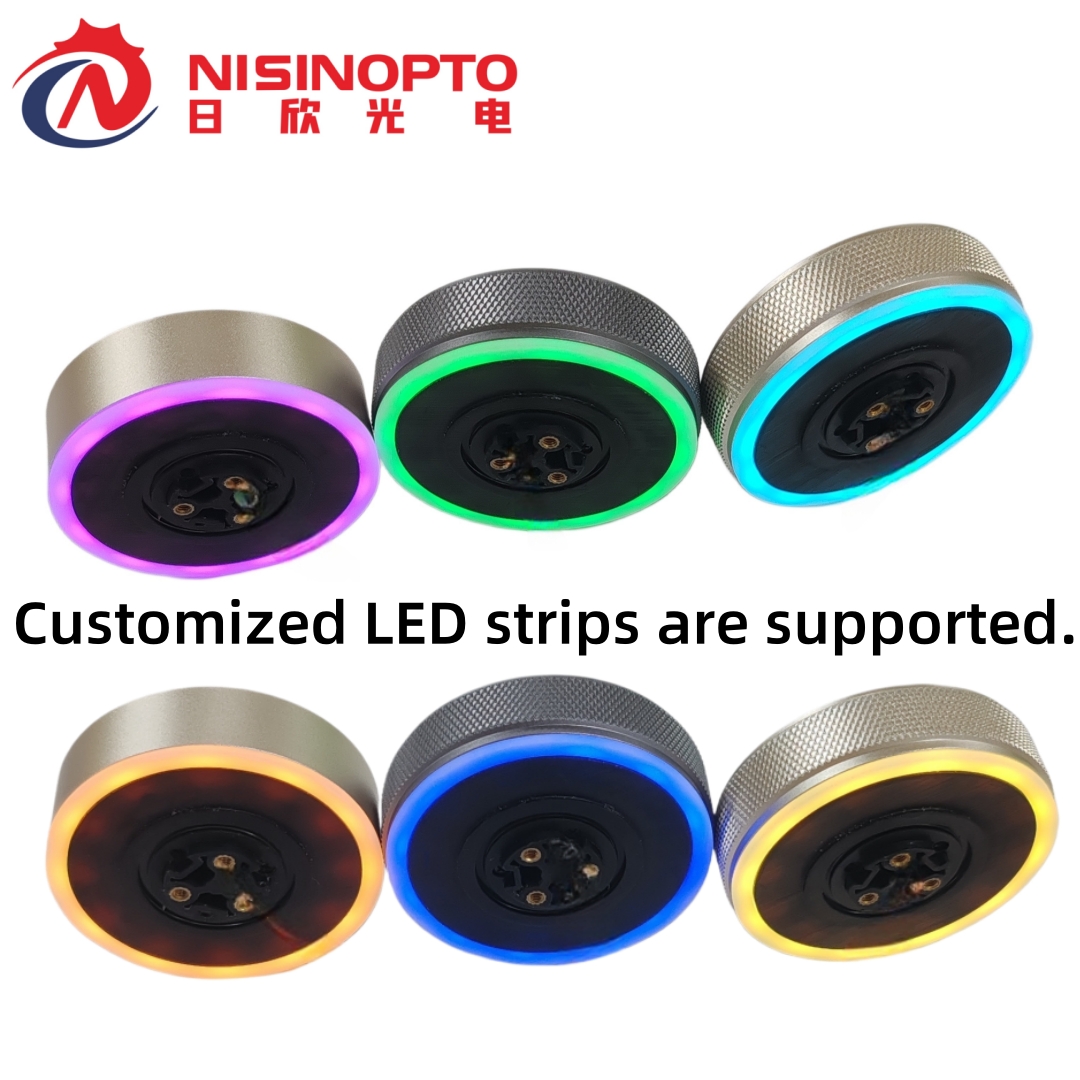

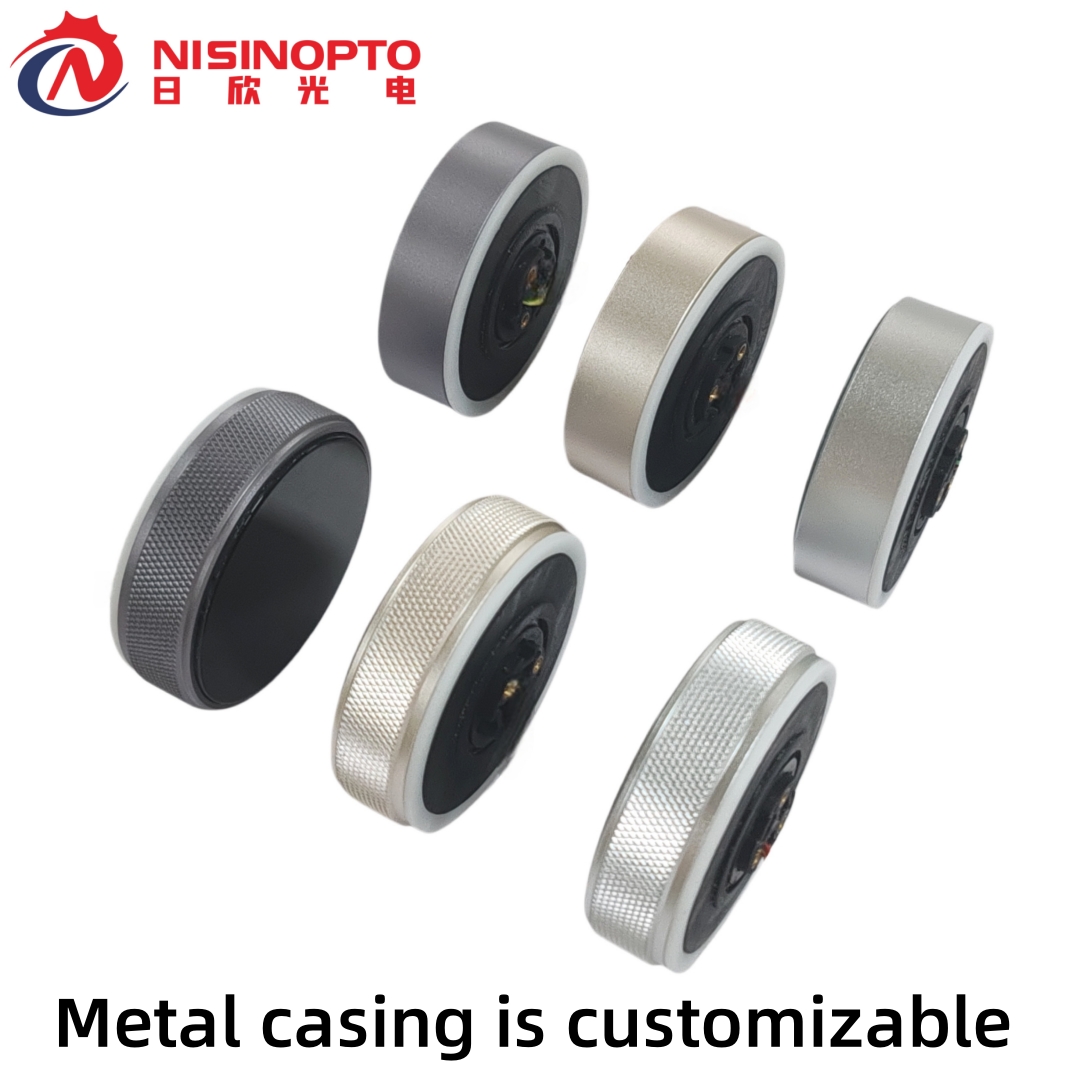

This 1.47‑inch TFT INCELL touch knob screen features a premium metal housing, available in metal flat surface и metal knurled finish versions. Housing color options include silver, черный, бронза, and champagne gold. Customization is supported for housing colors, LED light strips, and embedded software to meet personalized project requirements.

Boasting a square 360×360 resolution, the INCELL touch panel integrates 3‑in‑1 interaction: touch control, rotary knob and physical push‑button. Equipped with a TTL serial port and HY2.0‑5P terminal cable for easy integration. It delivers RGB565 color output, 300 нит яркость, 1000:1 contrast ratio and full‑viewing‑angle performance, with 40 ms fast response time.

Wide temperature tolerance enables reliable operation from ‑20℃ to +70℃; storage temperature ranges from ‑30℃ to +80℃. Built-in LeveTop UI platform simplifies GUI development for fast product deployment.

Application Industries

• Умный дом: Smart control panels, термостаты, fresh‑air system operator terminals
• Промышленное оборудование: Small industrial control meters, instrument adjustment panels, HMI for equipment parameter configuration
• Медицинское оборудование: Portable medical instrument displays & compact medical control terminals
• Consumer Appliances: Desktop audio equipment, кофемашины, smart home appliance control panels
• Робототехника: Local man‑machine interaction panels for robotic devices

Ключевые преимущества: Tactile premium metal housing with knurled / flat options; multi‑mode interaction of touch‑knob‑press; flexible customizations for housing color, light strips and firmware; robust wide‑temperature performance for smart terminal
