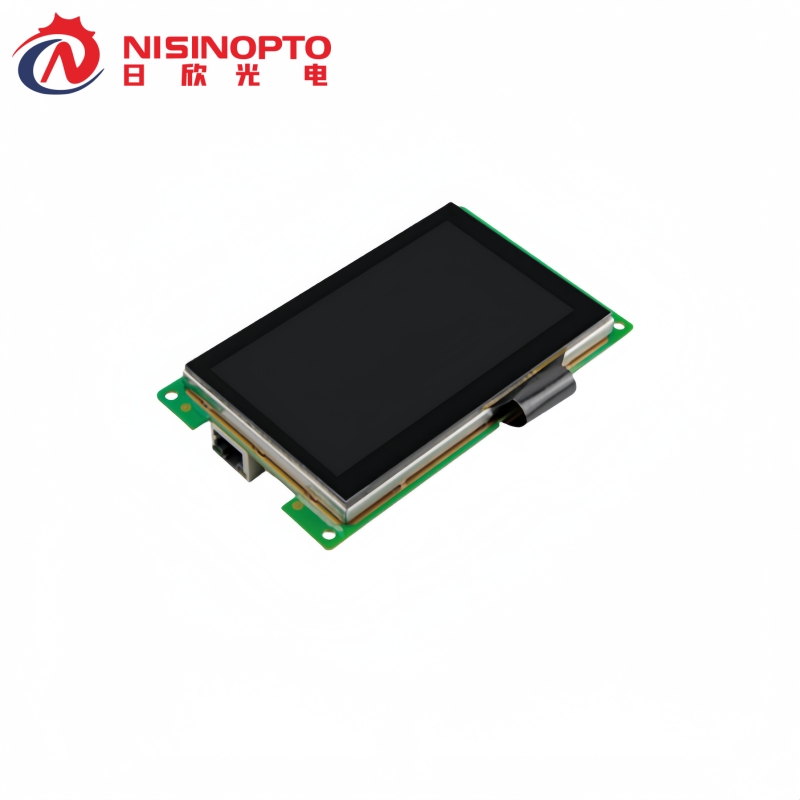

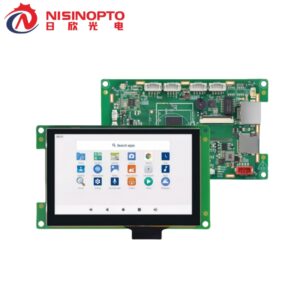

| Model | IXS043-A133P |

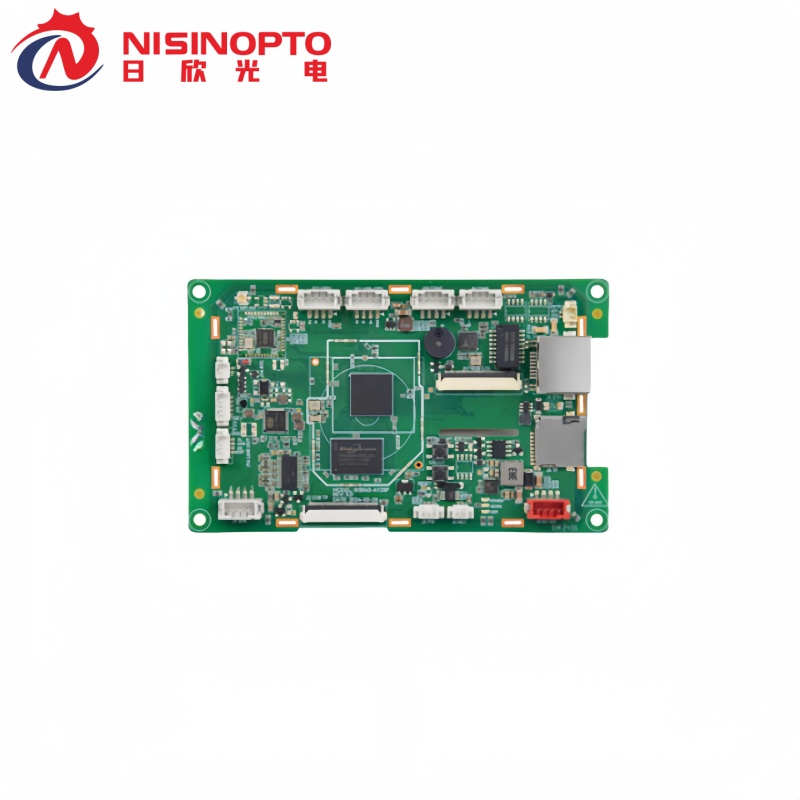

| CPU | Allwinner A133P, quad-core A53, main frequency 1.8GHZ |
| Memory + Storage | 1GB+8GB，2GB+16GB，4GB+32GB |
| Android System | Android 10 |
| Linux System | Ubuntu 18.04/Linux QT |
| Resolution | 800*480 |
| Backlight Brightness | 300 cd/m2 (optional 500cd/m2) |
| Viewing Angle | Full view |
| LCD Screen Type | IPS |

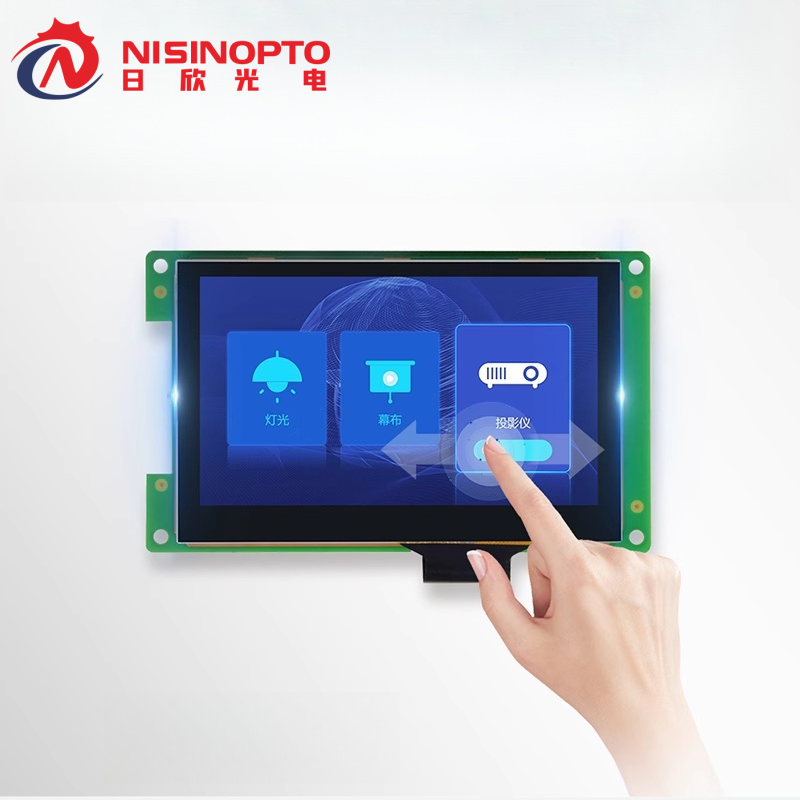

| Touch Type | 5-point capacitive touch (non-touch optional) |
| Ethernet | 10/100M adaptive Ethernet |
| WiFi/Bluetooth | Single-band 2.4GHz (optional dual-band WiFi), Bluetooth 4.2 |
| 4G/5G | External expansion board to expand 4G/5G module (optional) |
| GPS | 4G module with external expansion board to expand GPS function (optional) |
| USB | 1 USB 2.0, 1 USB OTG |
| TF Card | Self-flying TF card socket, supports up to 256GB |
| Serial Port | 2-way TTL/RS232/RS485 (2 RS232 by default) |
| GPIO | 3 GPIO signals |
| PoE | 1 2-core PoE PD socket |
| Audio | 1 single-ended MIC input pin interface, 1 8 ohm 6W dual speaker interface |
| User buttons | Reset button and burn button |
| Power supply | Support 12~24V wide voltage DC power supply |

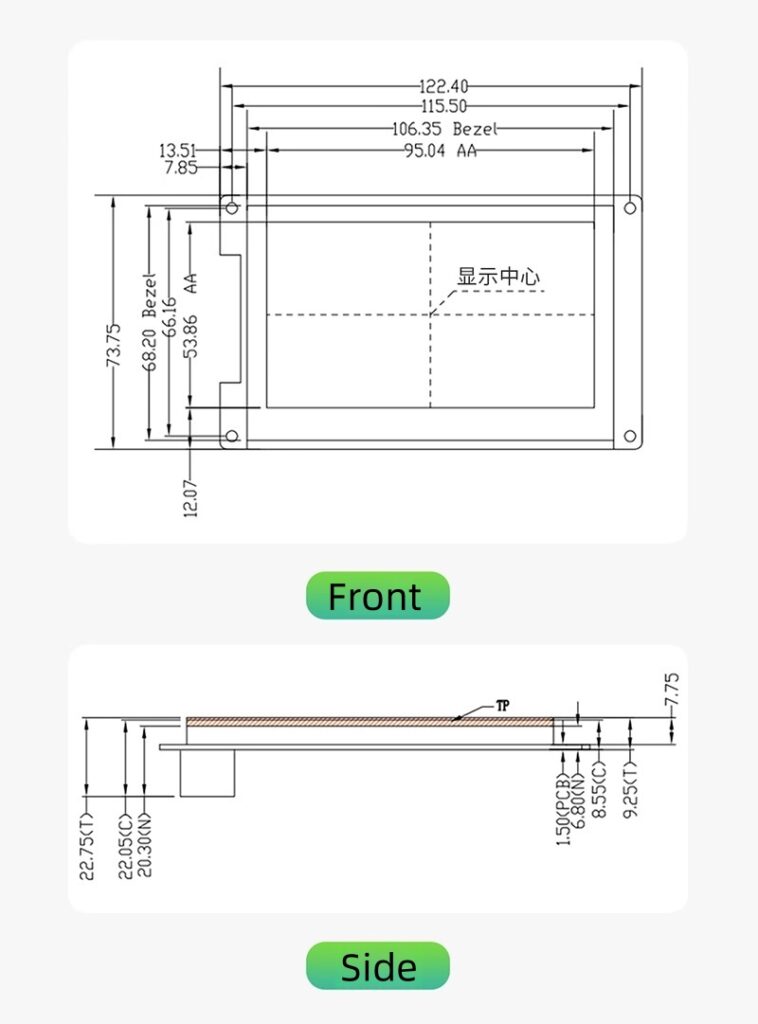

| Dimensions | Opening size 108.35*70.2mm Machine size 122.4*73.75*22.75mm Outer packaging size 155*100*55mm |
| Weight | Bare weight 0.1356kg Package weight 0.2056kg |
| Rated power | <3W |
| Operating voltage | 12~24V, typical value 12V |
| Standby power consumption | 0.36W |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Operating humidity | 0%~95%(no condensation) |
